DL30

Perfect for Online & Offline Education

CERTIFICATION

Features

Specs

Resources

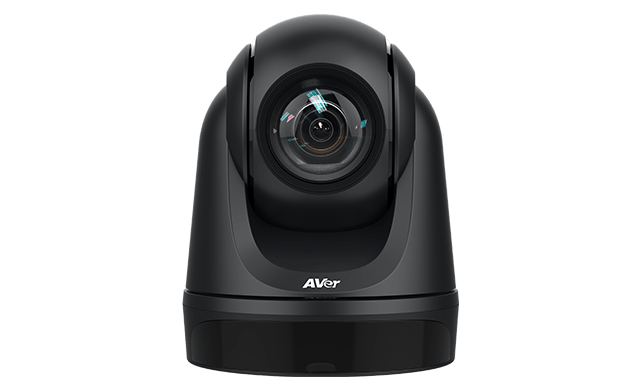

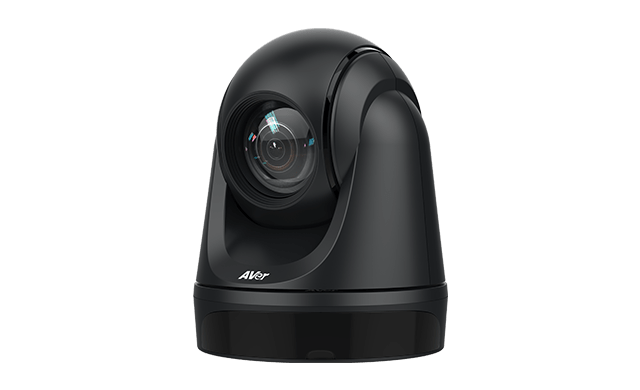

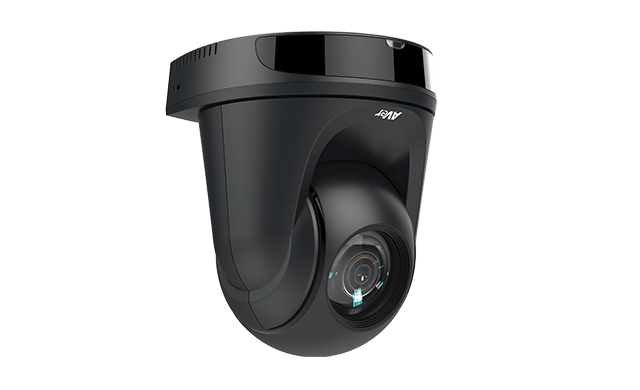

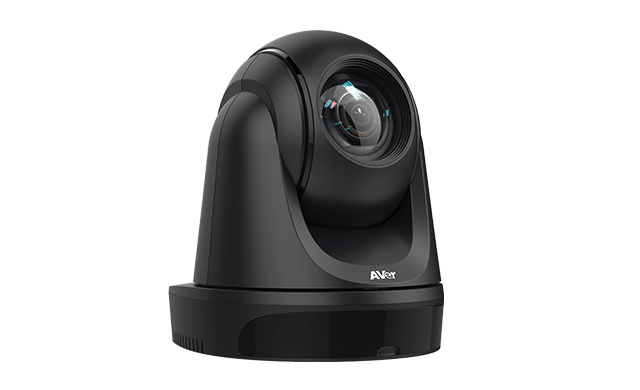

Distance Learning Tracking Camera

When distance learning and hybrid classrooms are the new normal, the AVer DL30 is a must-have solution for online education. With the DL30 connected to a laptop, you can present freely onstage while live streaming so students can learn no matter where they are. Teachers don’t need to be camera shy anymore—they can just be themselves and teach how they want thanks to the DL30 tracking camera!

Distance Learning
Hybrid Classroom
Full HD 1080p Resolution
12x Optical
Human Detection
Presenter Mode
Zone Mode
IP/USB Output

Perfect for Online & Offline Education

Simple controls and plug-and-play connectivity are the biggest advantages of the DL30, which is ideal for installing in every classroom. Students tuned in remotely and those present in the classroom can see each other and learn together like they would if they were in the same room. Enhance student engagement and interaction, and easily create distance learning and hybrid learning environments.

12X Optical Zoom

The DL30 is equipped with a 12X optical zoom that operates smoothly without distorting the image. It clearly presents the classroom blackboard panorama and medium, close-up, and long-distance shots of the teacher, providing stable shooting capability while maintaining detailed quality. With the DL30 running the show, teachers no longer need to suppress their creativity in hybrid environments!

1x Zoom
12x Zoom

AI-Powered Human Detection

AVer’s renowned Human Detection automatically recognizes human forms in the classroom and dynamically tracks specific targets or areas via multiple tracking modes. The target doesn’t need to wear any devices or sensors to maintain tracking. Even far-site students can clearly follow the teacher’s every move.

Presenter Mode

Superb tracking and anti-interference functions allow teachers to move freely in the classroom. Instructors can adjust the tracking settings, stream, and record to make their teaching more substantive and vivid. To change the tracking target, users can simply click one button on the remote control.

Zone Mode

Accurate segmented tracking clearly shows content on the blackboard or screen, automatically switching the tracking area according to the teacher’s position. Content and the presenter are displayed at the same time so students can understand notes for key points at a glance.

SPECIFICATIONS

WDCAMERA

Image Sensor 1/2.8″ 1080p Low Lux CMO Effective Picture Elements 2 Megapixels
Output Resolutions 1080p/60 (IP Streaming & USB) Minimum Illumination 0.5 Lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50dB Gain Auto, Manual
TV Line 800 (Center), 600 (Corner) Shutter Speed
  • 1/4 to 1/10,000 sec (60 Hz)
  • 1/3 to 1/10,000 sec (50 Hz)
Exposure Control Auto, Manual, WDR White Balance Auto, Manual
Optical Zoom 12X Digital Zoom 2X
WDR Yes Viewing Angles
  • DFOV : 84.1° (Wide) to 7.8° (Tele)
  • HFOV : 76.5° (Wide) to 6.8° (Tele)
  • VFOV : 47.3° (Wide) to 3.8° (Tele)
Focal length f = 3.9 mm (Wide) to 46.8 mm (Tele) Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance 0.3 m (Wide), 1.5m (Tele) Pan / Tilt Angles Pan : ±170°, Tilt : ±90°
Pan / Tilt Speed (Manual)
  • Pan: 1° to 90°/sec
  • Tilt: 7.85° to 45°/sec
 Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 256 (IP & USB) Camera Control – Interfaces IP, USB
Camera Control – Protocols VISCA (IP), CGI (IP), USB Image Processing Noise Reduction (2D/3D), Flip, Mirror, WDR
Power Frequencies 50 Hz, 60 Hz



AI Auto Tracking Functions

Tracking Modes Presenter Mode, Zone Mode



Audio

Channels 2ch (Stereo) Codecs AAC, PCM
Sample Rate AAC (48, 32, 16, 8 KHz), PCM (48 KHz)



Interface

Video Outputs IP, USB Audio Outputs IP, USB
Audio Inputs MIC in, Line in



General

Power Requirement AC 110–220V to DC 12V/2A Power Consumption 12W
PoE PoE+ Dimensions (W x H x D) 158.8 x 200.0 x 162.2 mm
Net Weight 1.62 (±0.1) kg Application Indoor
Tally Lamp N/A Security Kensington slot
Remote Control Infrared Operating Conditions
  • Temperature: 0°C to 40°C
  • Humidity: 20% to 80%
Storage Conditions
  • Temperature: -20°C to 60°C
  • Humidity: 20% to 95%

IP Streaming

Resolution 1080p 60fps Network Video Compress Formats H.264, MJPEG (Web Page
Network Audio Compression Formats AAC Bit-Rate Control Mode VBR, CBR
Maximum Frame Rate 1080p 60fps Sample Rate 48, 32, 16, 8 KHz
Range of Bit-Rate setting 512 Kbps to 32 Mbps Network Interfaces 10 / 100 Base-T
Multi-stream Capability
  • 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
  • 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
 Network Protocols IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI®|HX Capability N/A



USB

Connector USB 3.1 Gen 1 Type-B Video Format MJPEG, YUY2
Maximum Video Resolution 1080p USB Video Class (UVC) UVC 1.1
USB Audio Class (UAC) UAC 1.0



Web UI

Live Video Preview Yes Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera/Image Adjustment Exposure / White Balance / Picture Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS



Software Tools

IP Search and Configuration Tool Support Windows® 7 or later PTZ Management Supports Windows® 7 or later
PTZ Control Panel Supports iPadOS® 9 or later CaptureShare Supports Windows® 7 or later, macOS® 10.14 or later





Package Contents Camera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x4), Cable Fixing Plate (x1), M2 x 4mm Screws (x2), 1/4″-20L 7.5mm Screw (x1), Quick Start Guide Optional Accessories “Wall Mount Kit (Brackets (x2), M4 x 8mm Screws (x2), 1/4″-20L 7.5mm Screw (x1), Wall Mount Kit Installation Guide), Ceiling Mount Kit (Brackets (x2), M3 x 6mm Screws (x3), 1/4″-20L 7.5mm Screws (x3), Ceiling Mount Kit Installation Guide)”
